5.Hamabe Y, Hirose A, Yamada S, Takakuwa T et al, Morphology and Morphometry of Fetal Liver at 16–26 Weeks of Gestation by Magnetic Resonance Imaging – Comparison with Embryonic Liver at Carnegie Stage 23, Hepatol Res,2013; 43: 639–647, doi: 10.1111/hepr.12000
Abstract
Aim
Normal liver growth was described morphologically and morphometrically using magnetic resonance imaging (MRI) data of human fetuses, and compared with embryonic liver to establish a normal reference chart for clinical use.
Methods
MRI images from 21 fetuses at 16–26 weeks of gestation and eight embryos at Carnegie stage (CS)23 were investigated in the present study. Using the image data, the morphology of the liver as well as its adjacent organs was extracted and reconstructed three-dimensionally. Morphometry of fetal liver growth was performed using simple regression analysis.
Results
The fundamental morphology was similar in all cases of the fetal livers examined. The liver tended to grow along the transversal axis. The four lobes were clearly recognizable in the fetal liver but not in the embryonic liver. The length of the liver along the three axes, liver volume and four lobes correlated with the bodyweight (BW). The morphogenesis of the fetal liver on the dorsal and caudal sides was affected by the growth of the abdominal organs, such as the stomach, duodenum and spleen, and retroperitoneal organs, such as the right adrenal gland and right kidney. The main blood vessels such as inferior vena cava, portal vein and umbilical vein made a groove on the surface of the liver. Morphology of the fetal liver was different from that of the embryonic liver at CS23.
Conclusion
The present data will be useful for evaluating the development of the fetal liver and the adjacent organs that affect its morphology.
4. Shiraishi N, Yamada S, Takakuwa T. Three-dimensional Models Once Again – for research and teaching of early human development, Congenit Anom (Kyoto), 2013; 53(1), 58-59, doi: 10.1002/ar.22662
2.Nakashima T, Hirose A, Yamada S, Uwabe C, Kose K, Takakuwa T, Morphometric analysis of the brain vesicles during the human embryonic period by magnetic resonance microscopic imaging, Congenit Anom (Kyoto). 2012 Mar;52(1):55-8, doi; 10.1111/j.1741-4520.2011.00345.x
ABSTRACT
The development of the brain vesicles between Carnegie stages (CS) 17 and 23 was analyzed morphometrically using 177 magnetic resonance image data derived from the Kyoto Collection of Human Embryos. Whole embryonic volume was 106.55 ± 21.08 mm3 at CS17, exponentially increasing to CS23 when it reached 1357.28 ± 392.20 mm3. Length of brain vesicles was 29.83 ± 2.52 mm at CS17, increased almost linearly and reached 49.31 ± 6.66 mm at CS23. The rate of increase was approximately 4.2 times higher on the dorsal side than on the ventral side. The increase in the length of the brain vesicles resulted mainly from that of the prosencephalon, and the rate of increase was three times higher on the dorsal side than on the ventral side of the prosencephalon.
External ears, one of the major face components, show an interesting movement during craniofacial morphogenesis in human embryo. The present study was performed to see if movement of the external ears in a human embryo could be explained by differential growth. In all, 171 samples between Carnegie stage (CS) 17 and CS 23 were selected from MR image datasets of human embryos obtained from the Kyoto Collection of Human Embryos. The three-dimensional absolute position of 13 representative anatomical landmarks, including external and internal ears, from MRI data was traced to evaluate the movement between the different stages with identical magnification. Two different sets of reference axes were selected for evaluation and comparison of the movements. When the pituitary gland and the first cervical vertebra were selected as a reference axis, the 13 anatomical landmarks of the face spread out within the same region as the embryo enlarged and changed shape. The external ear did move mainly laterally, but not cranially. The distance between the external and internal ear stayed approximately constant. Three-dimensionally, the external ear located in the caudal ventral parts of the internal ear in CS 17, moved mainly laterally until CS 23. When surface landmarks eyes and mouth were selected as a reference axis, external ears moved from the caudal lateral ventral region to the position between eyes and mouth during development. The results indicate that movement of all anatomical landmarks, including external and internal ears, can be explained by differential growth. Also, when the external ear is recognized as one of the facial landmarks and having a relative position to other landmarks such as the eyes and mouth, the external ears seem to move cranially.
1. Hirose A, Nakashima T, Yamada S, Uwabe C, Kose K, Takakuwa T, Embryonic liver morphology and morphometry by magnetic resonance microscopic imaging , Anat Rec (Hoboken). 2012 Jan;295(1):51-9., doi; 10.1002/ar.21496

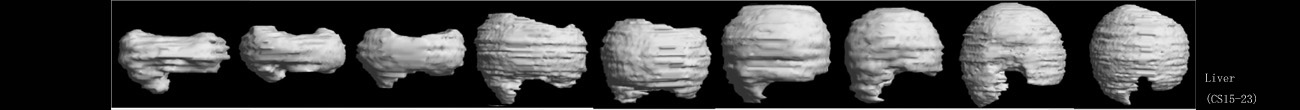

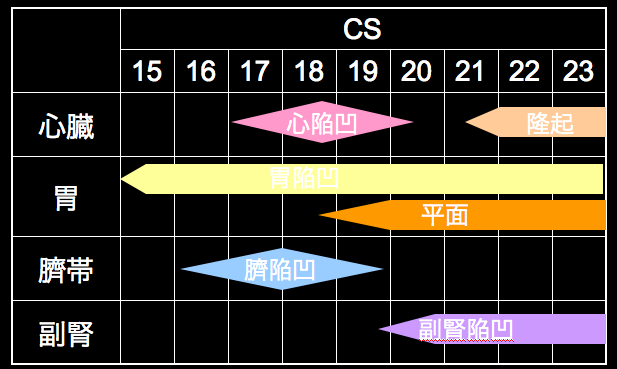

Abstract
